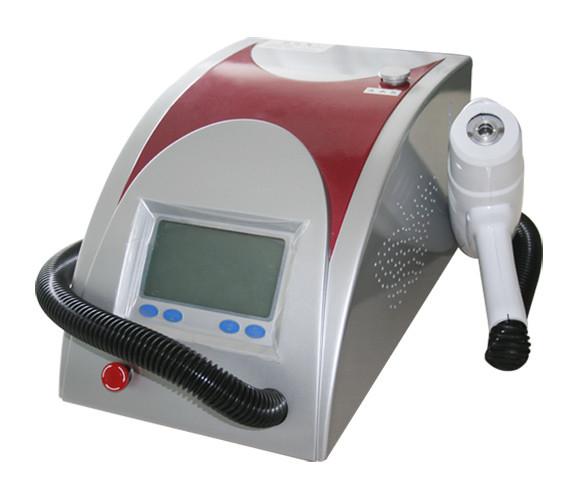

2100803 - Laser Tattoo Remover

Description:

I Theory:
YINHE series laser tatoo equipment adopts the Q swithch mode, which makes use of the instantaneous emitted laser to break the pigment in ill structure.. That¡¯s the laser instantaneous emit theory: centralized high energy emit suddenly, which makes laser of settled wave band instantaneously penetrate through cuticle to the ill structure in 6ns, and break the relevent pigments quickly. After aborb the heat, the pigments swell and break down, some pigments ( in skin-deep cuticle ) fly off the body immediately, and other pigments ( deep structure ) break down then become the tiny granule can be licked up by the cell, digested and egest from the lymph sell.Then the pigments in ill structure lighten to disappear. Moreover, the laser do not damage the around normal skin.

II Applications:
1.Pigment deposit dispelling
2.tattoo removal:can remove black,blue,brown and red tattoo pigments on eyebrow, eyeline, lipline and other parts of body.
3.Eliminate the age pigment, spot, birthmark, and pigment changes.

III Features:
1.Using the world¡¯s most advanced ABS insulation material, anti-interference capability and a more stable unit.
2.Q-switched without permanent replacement
3.Double-band free conditioning
4.Water temperature detection, water temperature can be set free, when the water temperature is too high, automatically stop working
5.Flow testing, when the flow is too small or stop, equipment will automatically withdraw from the work of state
6.Multilingual arbitrary switching, anywhere in the world can be easily grasped.
7.Instruction Light: Net imports of infra-red indicator to spot more accurate treatment has greatly enhanced point utilization, cost saving.

IV Specifications:
Wavelength: 1064nm 532nm
Type of laser: switch Q, KTP/ YAG D laser insrument
Pulse energy:1100mj
Width of pulse: 3.5-10ns Frequency: 1-5Hz
Spot diameter: 1-6mm
Cooling system: wind + water +semiconductor Size:38¡Á24¡Á20cm
power 400w Weight: 13 KG Voltage: 220V£¨110V£©/5A 50Hz
